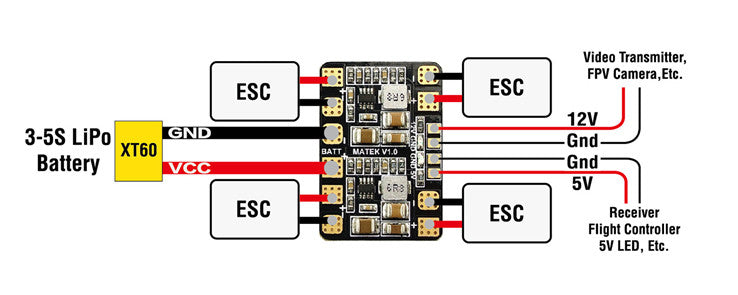

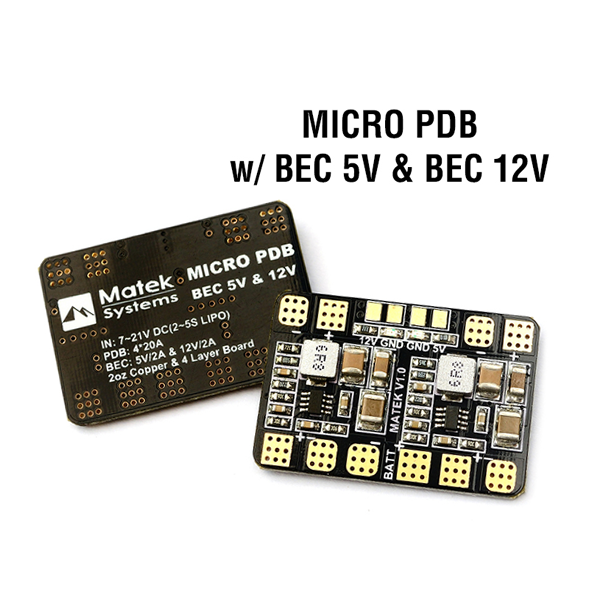

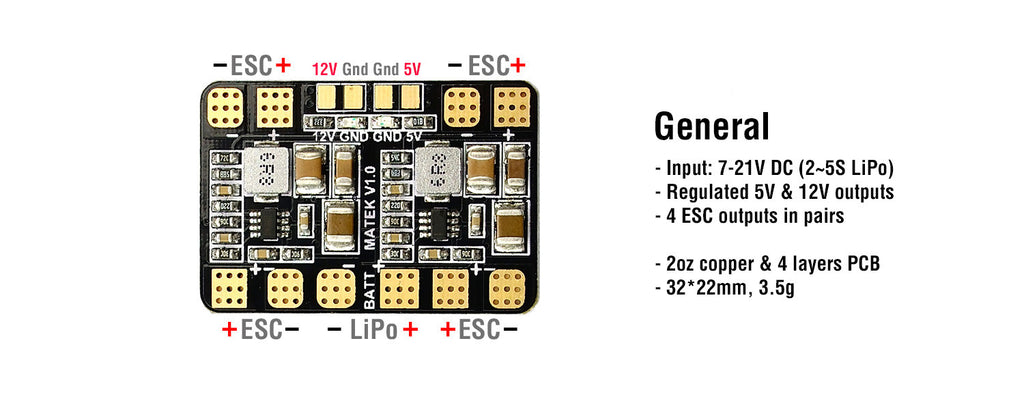

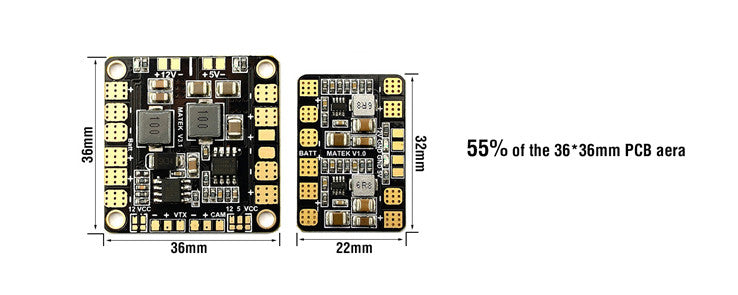

The Micro PDB has been engineered to provide the highest possible performance and reliability in a 32*22mm & 4 layers PCB. Its perfect for TIGHT BUILDS with minimal space. It distributes power from a battery pack to 4 ESCs, as well as providing dual synchronised & regulated DC outputs for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers a very compact solution to achieve 2A continuous output current over a wide input supply range(3S to 5S LiPo).
Features:
- 2oz copper & 4-layers PCB
- ESC & Battery solder tabs in pairs
- 5V & 12V Output LED indicators & Short circuit tolerant
- Micro size & lightweight
