Description:

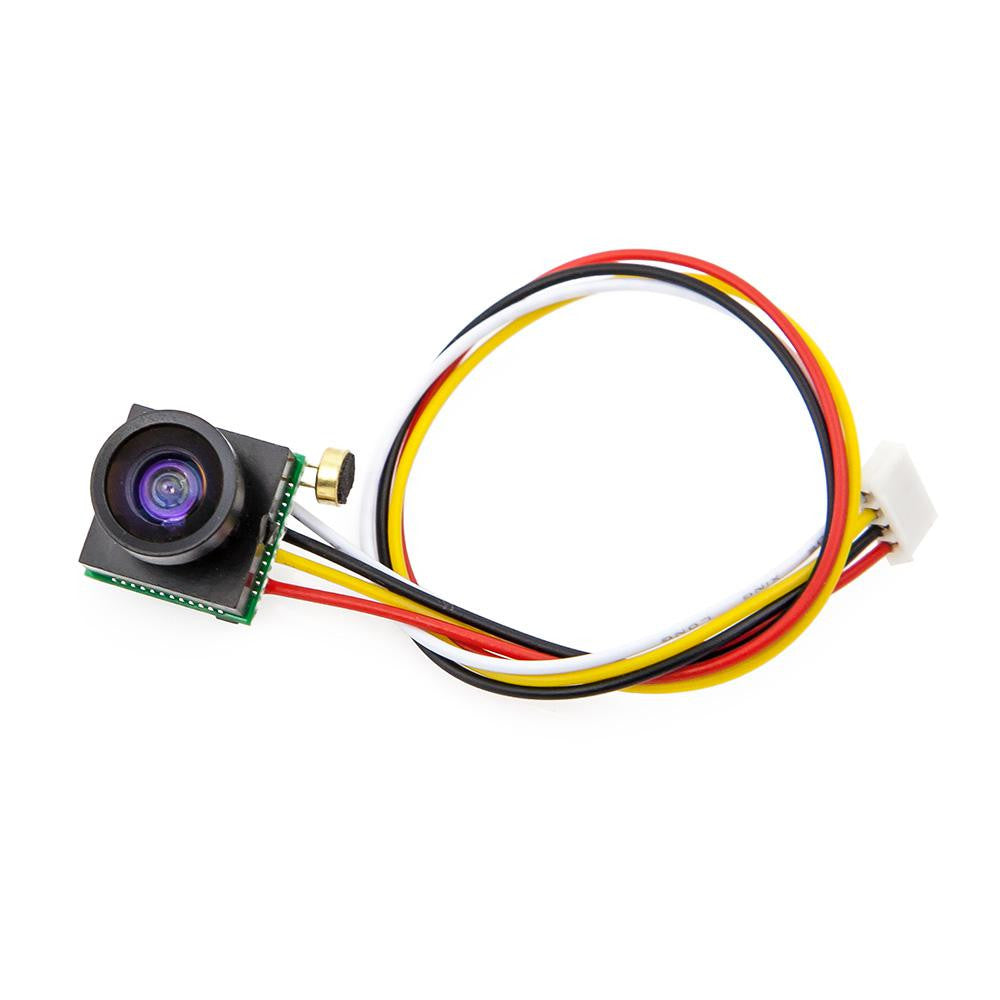

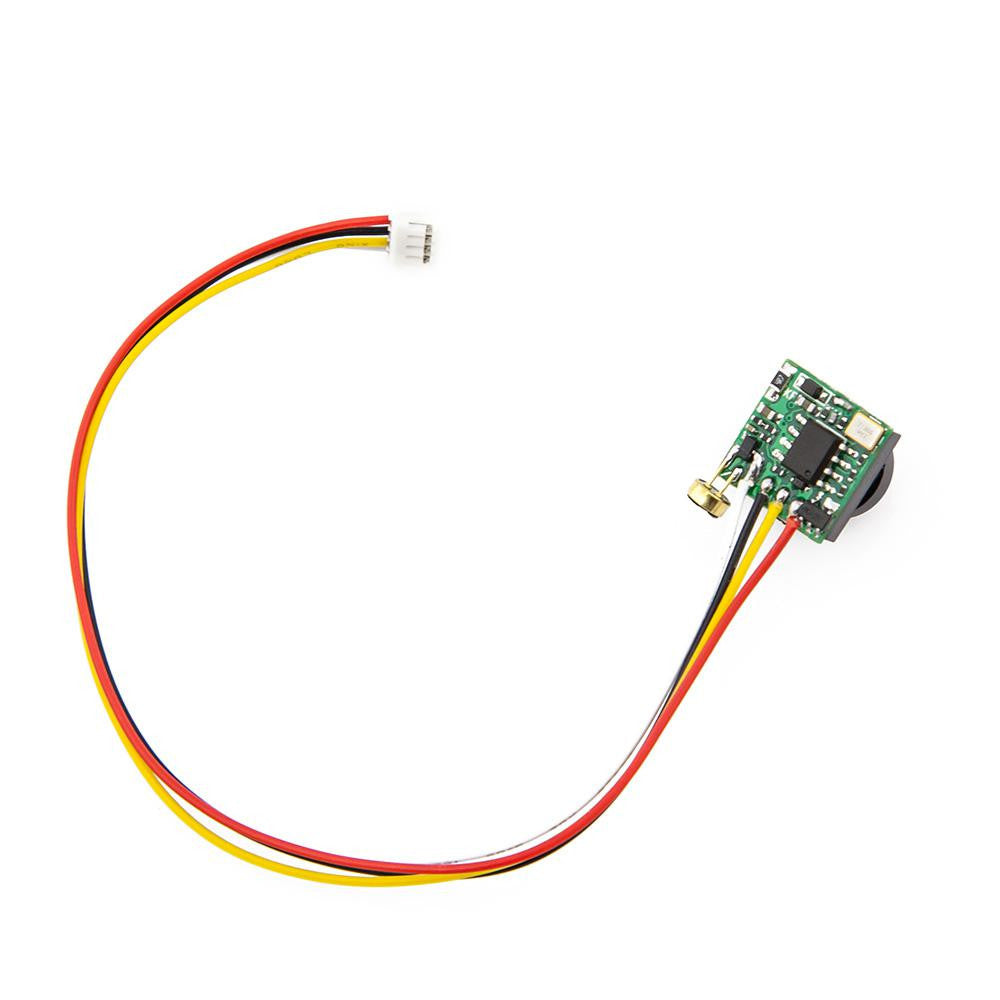

This is a super small camera (12.5x12.5x17mm) weighing in at only 3 grams, yet still delivering an excellent FPV picture at 600tvl. The 120 degree FOV gives you a super-wide and full forward view, while supporting an input voltage of 3.3-5v (1s Lipo), making it perfect for micro/mini setups. The camera has an imbeded mic making it easy to send audio via a A/V transmitter. Use this camera in aircraft where size and weight is important, perfect for small multi-rotors, airplanes and even RC cars.
Application:
This camera will fit out SuperLight 3" and SuperLight 4".
FOV:
This camera's FOV is very wide. For a more narrow FOV see this camera.
Specifications:
| Sensor: | Single chip 1/4 CMOS |
| System: | NTSC |
| Pixels: | NTSC：648（H）×488（V |
| Image Signal Process: | Digital Signal Processing System |
| Sensor Dimension: | 3.59mm（H）×2.70mm（V） |
| Horizontal Resolutions: | Approximately 600TV Lines |
| Sensitivity: | 0.1Lux/F1.2 |
| Lens & View Angle: | 1.8mm F1.2/140 ° |
| S/N Ratio: | 48dB |
| Electronic Shutter: | NTSC（1/50 S TO 1/100000）S |
| Auto Gain Control: | AUTO |
| White Balance Control: | AUTO |
| Back Light Compensation: | AUTO |
| Microphone: | Built into camera |
| Video Out: | 1.0V p-p/75ohm |
| Size (L x W x H): | 12.5x12.5x17mm |
| Weight: | 3g |
| Working Current: | 50mA |
| Power Requirement: | DC 3.6V-5V (over 5v will damage the camera) |
| Operating Temperature: | - 10° C ~ +50°C ，less than 90% RH |
| Connection: | Red - Vin, Black - Ground, Yellow - Video Signal, White - Audio |
