This product is temporarily unavailable
Note: Cased version screen colors can range from White to Red/Orange. Boxed version colors range from White to Blue. This may change from batch to batch and we cannot guarantee which color you will receive.
FEATURES
- Quad Ball Bearing Gimbals
- Receiver Match
- Audio Speech Outputs (values, alarms, settings, etc.)
- Antenna Status Detection and Alters
- Real-time Flight Data Logging
- Reception Signal Strength Alerts
- Super Low Latency
- Smart Port Supported
SPECIFICATIONS
- Model: Taranis X9D Plus (MODE 2)
- Does not include receiver
- Operating Temperature Range: -10°C - 45 °C
- Operating System: 2-stick, 16 channels, ACCST 2.4GHz, full telemetry
- Transmitting Frequency: 2.4 GHz band
- System: D16, D8 LR12, switchable
- Power Supply: DC 7.2V 6 cell Nickel–metal hydride battery
- Current Drain: 260 mA maximum (RF power on and back light on)
- Operating Humidity: 45%-80%
Includes:

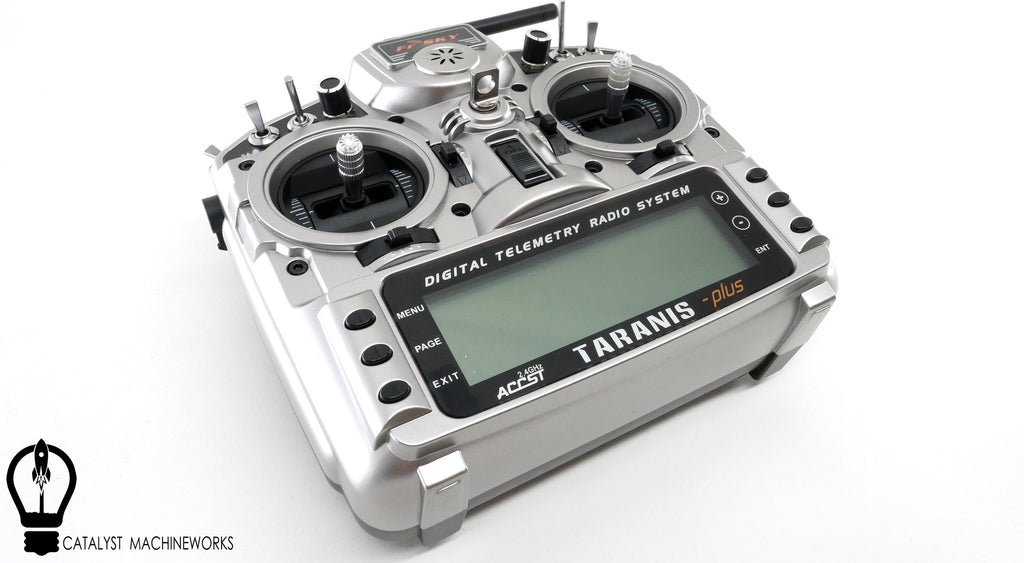

- Taranis X9D Plus Transmitter - Mode 2 (Left Stick Throttle)
- 2000mAH 7.2V Ni-MH Battery
- US Style Wall Charger
- Neck Strap with Balancer

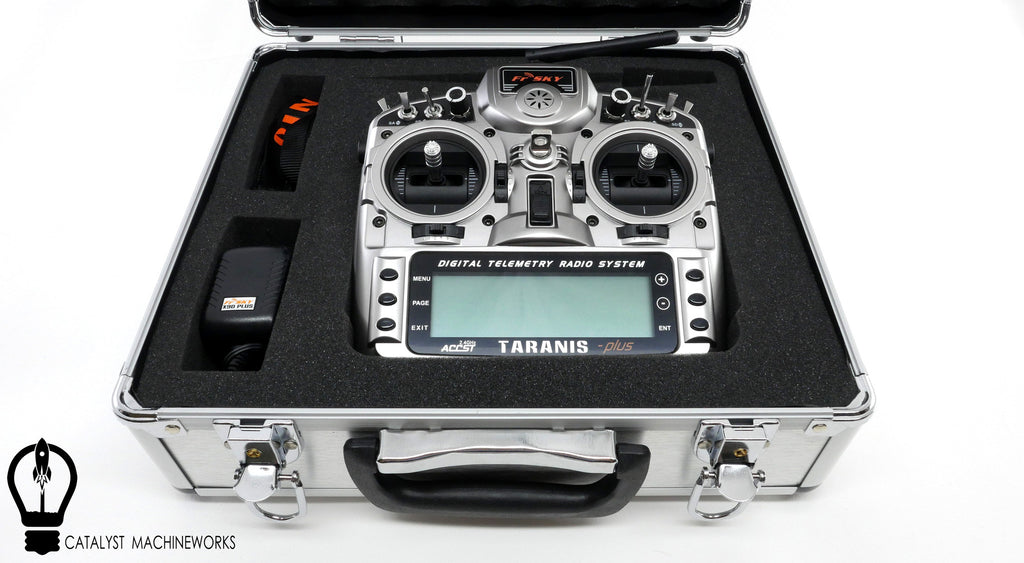

- Aluminum Case*
UHF Pin-Out:
- White = PPM
- Red = (+) Bat
- Black = GND
