This antenna is the same performance as the original standard length Triumph, however this one went on a diet. If you are looking to save precious grams on our build this is the one to go with! In addition to being lighter it also is better in crashes.
While other antennas rely on copycat designs the TBS Triumph takes a giant leap in 5.8 GHz antenna technology. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.
In our quest for the cleanest video signal and best range possible, we have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.
After extensive design and testing, we focused on making sure that the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from our pilots, we decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection we created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects.
FEATURES:
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Extra compact and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance
SPECIFICATIONS:
- Frequency range: 5500-6000MHz

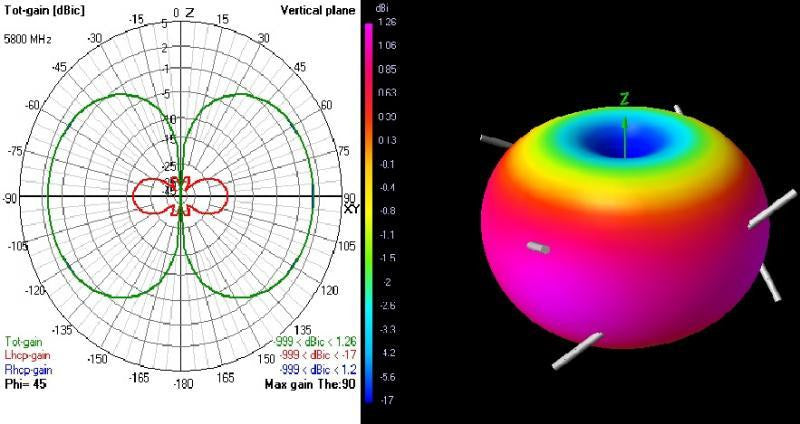

- Gain: 1.26dbic
- Axial Ratio: 0.74
- Cable: RG402 (heavy duty)
- Weight: 8.5g

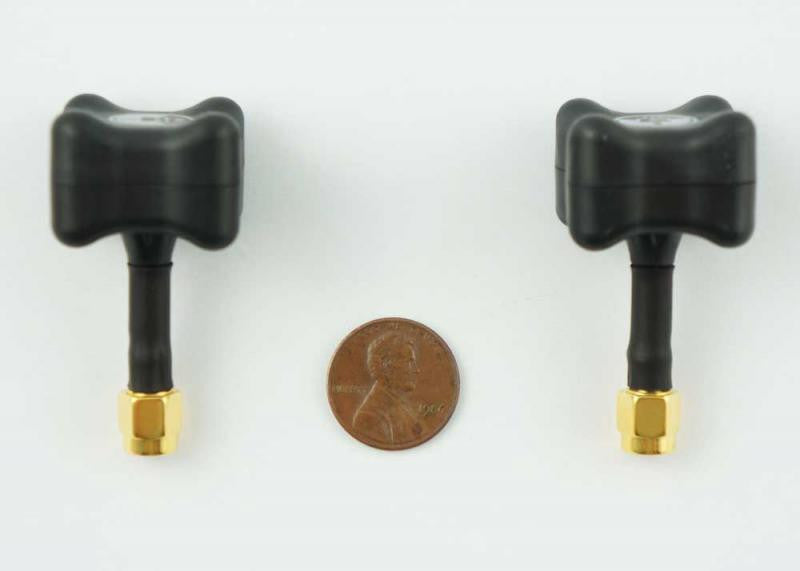

- Height: 50mm, 1.97 in

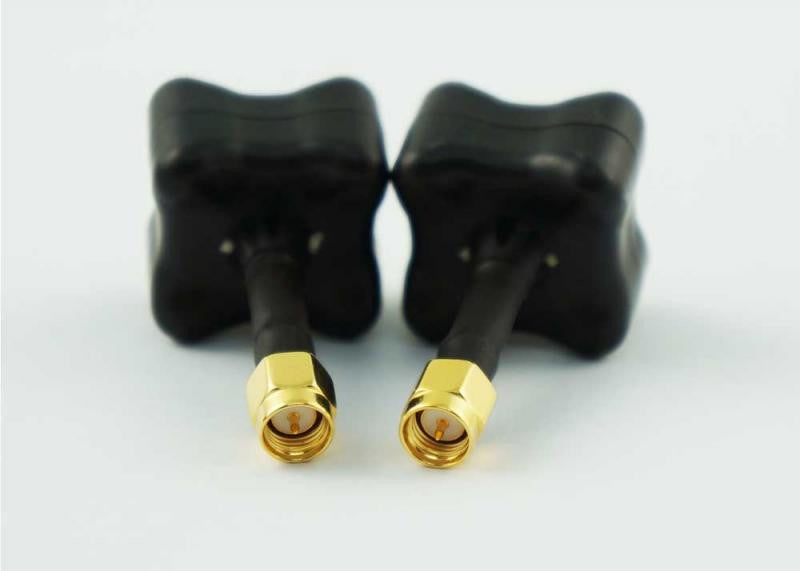

- Connector: SMA
PACKAGE CONTENTS:

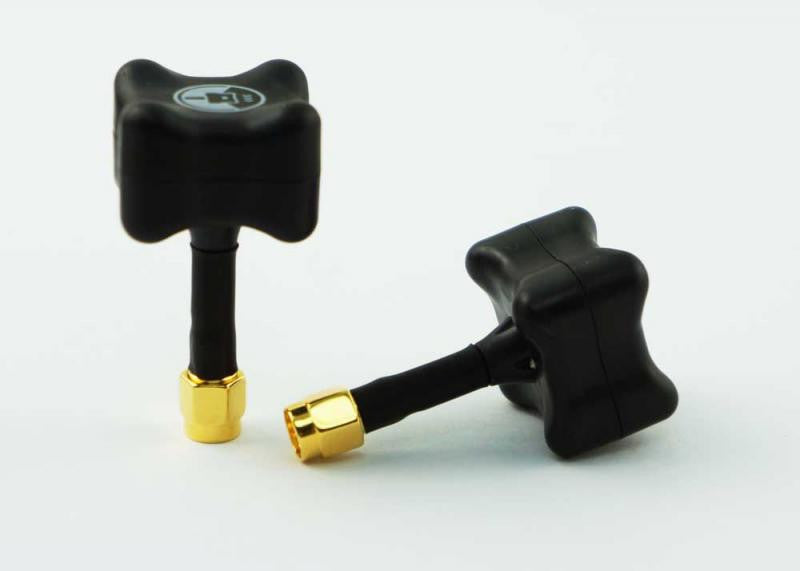

- 2x TBS Triumph "Stubby" antenna SMA
Please take note which type of connector your transmitter and receiver have installed. If you overlook this, you can damage your transmitter. Issues due to this are not covered under warranty.
